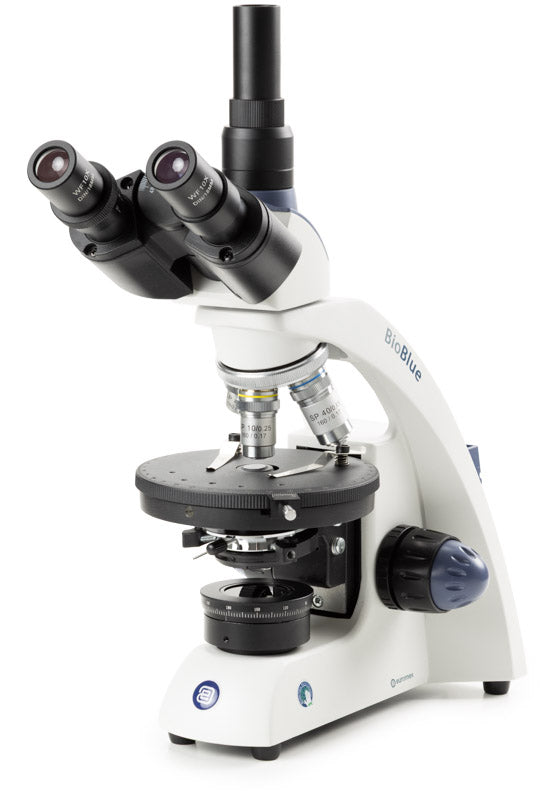

BioBlue BB.4241-P-DLED Trinocular Microscope

BioBlue

The BioBlue BB.4241-P-DLED is the polarising, trinocular-head version of the BioBlue series, Euromex's educational range that looks after ergonomics without stretching the budget. It features a slide-in analyser, a 360° rotating polariser above the lamp and a 129 mm round rotating stage with vernier. Its 1 W two-colour LED illumination runs on mains power or cordless thanks to 3 rechargeable AA batteries.

Technical specifications

• Secured DIN WF 10x/18 mm eyepieces
• Siedentopf-type trinocular head, inclined at 30° and rotatable through 360°
• Slider with analyser and 360° rotating polariser above the lamp
• Inverted quadruple nosepiece on ball bearings
• Semi-plan objectives 4x, 10x and S40x
• All optics with anti-fungus and anti-reflection coating for maximum light transmission
• Coaxial coarse and fine focusing with 200 divisions: 2 µm precision, 0.4 mm per revolution, total travel of approx. 23 mm and friction adjustment
• 129 mm round stage, rotatable through 360°, with 2 specimen clips and vernier
• Abbe condenser N.A. 1.25, height-adjustable, with iris diaphragm and filter holder
• 1 W two-colour LED illumination with external USB-C adaptor, 5 V DC, and multi-connector 100-240 V AC (CE), 50/60 Hz
• Cordless use with 3 rechargeable NiMH AA batteries
• Paint finish with antibacterial protective coating
• Includes power cable, dust cover and 5 ml of immersion oil, in a polystyrene case
