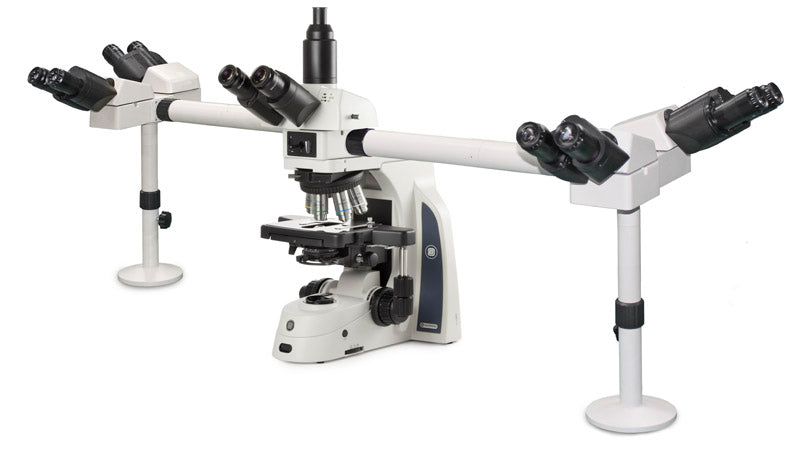

Delphi-X Observer DX.1156-PLi/5 5-viewer multihead microscope

Delphi-X Observer

The DX.1156-PLi/5 is the side-by-side multihead system in the Delphi-X Observer series, designed for five people to view the same slide at the same time: one trinocular head and four binocular heads with SWF 10x/25 mm eyepieces. It features PLi plan objectives from 4x to 100x on a sextuple nosepiece and 3 W NeoLED illumination with iCare sensor, an ideal set-up for teaching and pathology.

Technical specifications

• Side-by-side multihead system for 5 viewers
• One trinocular head and four Siedentopf binocular heads inclined at 30°, with Ø 30 mm tubes and SWF 10x/25 mm eyepieces
• Interpupillary distance from 47 to 78 mm and dioptre adjustment on both eyepieces
• Sextuple inverted nosepiece on ball bearings
• PLi plan objectives 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65 and S100x/1.25 oil immersion, IOS, EIS 60 mm parfocal, M25 thread
• Anti-fungus and anti-reflection coated optics for maximum light transmission
• 190 x 152 mm stage with integrated 80 x 54 mm mechanical slide holder and scratch-resistant Gorilla™ glass
• Swing-out Abbe condenser N.A. 0.90/1.25, height adjustable, with engraved numerical aperture
• Coaxial coarse and fine focusing: 100 divisions, 1 µm precision, 0.1 mm per rotation and a travel of approx. 35 mm
• Focus stop to protect slides and objectives, with friction adjustment
• Adjustable 3 W NeoLED transmitted illumination, with internal 100-240 V power supply (CE)
• iCare sensor: the illumination switches off automatically when the user moves away from the microscope, saving energy
• Rear carrying handle for safe transport and Allen key in integrated holder
• Supplied with power cable, spare 500 mA 250 V fuse, 5 ml immersion oil, dust cover and user manual, in a cardboard box
