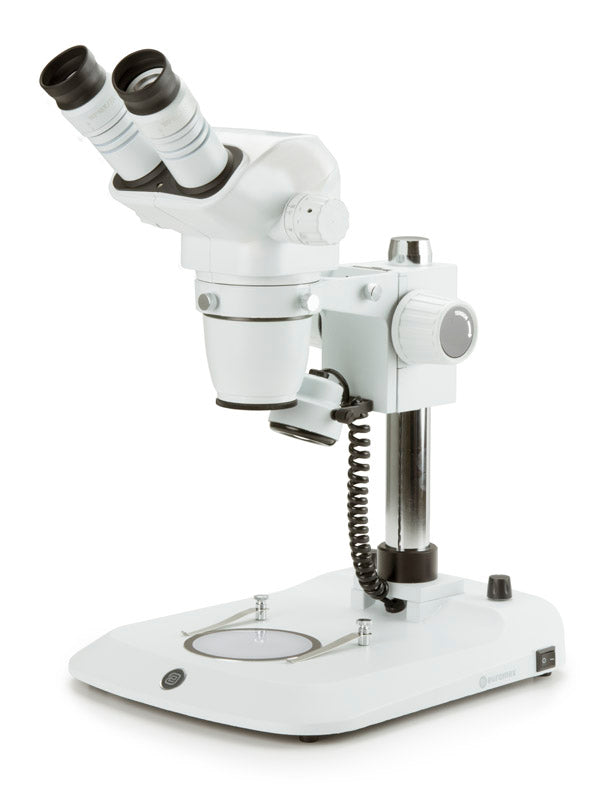

NexiusZoom ESD NZ.1902-P-ESD Binocular Stereo Microscope

NexiusZoom ESD

The NexiusZoom ESD is the anti-static version of Euromex zoom stereo microscopes: the body and stand are finished with a dissipative paint that stops static electricity from the user damaging the specimen, which makes it particularly suitable for the electronics sector. The NZ.1902-P-ESD combines a binocular head, a 0.67x to 4.5x zoom (6.7x to 45x), a 110 mm working distance and dual 3 W LED illumination with separate brightness control, all with excellent value for money.

Technical specifications

• Pair of HWF 10x/22 mm high eyepoint widefield eyepieces without eyeguards
• Binocular head with tubes inclined at 45°
• Dioptre adjustment of ±5 on both tubes and interpupillary distance adjustable from 54 to 75 mm
• Zoom objective from 0.67x to 4.5x, magnification from 6.7x to 45x
• Field of view from 33 mm to 4.9 mm and working distance of 110 mm
• Ergonomic pillar stand, maximum object height 148 mm
• Includes opaque stage plate, white/black plate and 2 specimen clips
• 3 W incident and transmitted LED illumination with internal power supply
• Intensity of both illuminations adjustable separately
• Body and stand with static dissipative paint that eliminates harmful electrostatic discharges
• Supplied with a dust cover in a polystyrene box
