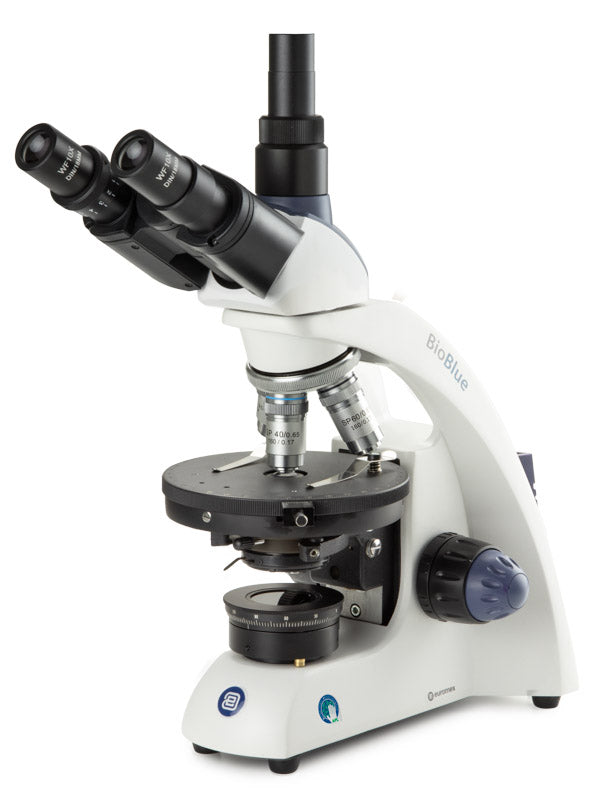

BioBlue BB.4243-P-DLED Trinocular Microscope

BioBlue

The Euromex BioBlue series is designed for education, with particular attention to ergonomics and optics that deliver sharp images at every magnification. The BB.4243-P-DLED is the trinocular polarising version: slide-in analyser, 360° rotating polariser, round rotating stage with vernier and semi-plan objectives from 4x to S60x. Its 1 W two-colour LED illumination can run cordlessly thanks to three rechargeable AA batteries.

Technical specifications

• Secured DIN WF 10x/18 mm eyepieces
• Siedentopf-type trinocular head, inclined at 30° and rotating 360°
• Slide-in analyser and 360° rotating polariser on the lamp holder
• Inverted quadruple nosepiece on ball bearings
• Semi-plan objectives 4x, 10x, S40x and S60x
• Optics with anti-fungus and anti-reflective coating for maximum light transmission
• Coaxial coarse and fine focusing with 200 divisions: 2 µm precision, 0.4 mm per revolution, total travel of approx. 23 mm and friction adjustment
• 129 mm round stage, rotating 360°, with 2 specimen clips and vernier
• Abbe condenser N.A. 1.25, height adjustable, with iris diaphragm and filter holder
• 1 W two-colour LED illumination with external 5 Vdc USB-C adaptor and 100-240 Vac multi-connector (CE, 50/60 Hz)
• Cordless use with 3 rechargeable NiMH AA batteries
• Paint with antibacterial protective coating
• Includes power cable, dust cover and 5 ml of immersion oil, in a polystyrene box
