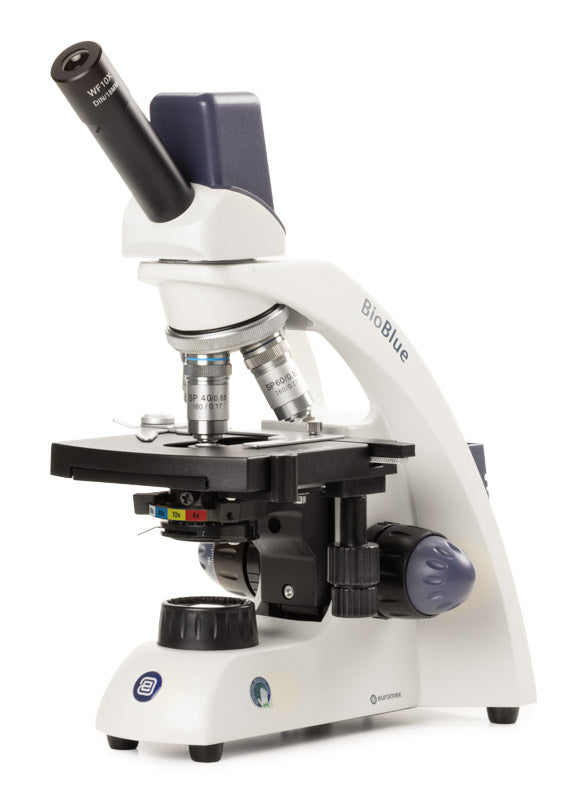

Digital Microscope 5.0 MP Monocular BioBlue BB.4245

Euromex BioBlue digital microscope

Euromex digital microscopes have the same functions as standard microscopes, but because they have a built-in camera, they offer a compact solution for viewing microscopic images without the need to add an external camera to the microscope.
The included software allows the user to view live images on a computer screen or on a projector. The software also allows you to take still photos and record video, and it includes editing and measurement functions.

BioBlue digital microscopes with integrated 5.0 MP USB-2 camera

The DIN WF 10x/18 mm eyepieces and the 45 mm DIN semi-plan achromatic objectives of the BioBlue models produce sharp, high-resolution images. The 120 x 120 mm simple stage and the 130 x 130 mm mechanical stage with 70 x 28 mm X-Y travel allow precise and stable positioning of the specimen. Supplied with Abbe condenser and NeoLED or LED illumination with built-in rechargeable batteries for corded and cordless operation.

Technical specifications of the BioBlue digital microscope

EYEPIECES
Pair of WF10x/20 mm wide-field eyepieces

HEAD
Binocular and trinocular Siedentopf-type models, inclined at 30°, rotatable through 360º with locking screw and with Ø 30 mm eyepiece tubes.
The interpupillary distance is adjustable between 48 and 75 mm. ±5 dioptre correction on the left eyepiece tube. The trinocular head has a light distribution of 50% observation / 50% photography and produces a non-inverted image

NOSEPIECE
Quadruple reverse nosepiece mounted on ball bearings. With slot (BB.9602)

OBJECTIVES
BioBlue.Lab microscopes are equipped with plan achromatic, infinity-corrected (IOS) plan achromatic and infinity-corrected (IOS) phase plan achromatic objectives. Plan achromatic and infinity-corrected (IOS) plan achromatic objectives of 20x/0.40 and S60x/0.85 are also available as options. The S40x, S60x and S100x objectives are of the retractable type. All optical components have anti-fungus treatment and anti-reflection coatings for maximum light transmission

FOCUSING
Coarse and fine focusing with 1.5 μm precision, 200 graduations per turn of the fine focus (0.3 mm.). Total travel of approximately 28 mm. With a safety system to limit the height of the stage and protect the specimen and the high-magnification objectives. With focus tension adjustment

STAGE
Rackless stage with X axis of 150 x 140 mm. X-Y travel of 75 x 30 mm

CONDENSER
Abbe condenser N.A. 1.25, height-adjustable, with filter holder ring and iris diaphragm. Supplied with white filter
Zernike phase contrast kit for infinity-corrected (IOS) phase objectives PLPHi 10/20/40/100x, rotating condenser with 4 phase rings, telescope for phase centring and green filter. The Zernike condenser also allows brightfield observation

ILLUMINATION
All models have adjustable-intensity illumination based on a 3W NeoLED™. Internal power supply 100-240 VAC

WEIGHT
The weight of the BioBlue.Lab model is approximately 5.5 kg

CAMERA• All BioBlue digital microscopes are equipped with a 5.0 MP CMOS USB-2 camera
• Maximum resolution 2560 x 1920, 24-bit colour depth, up to 30 frames per second
• Supplied with ImageFocus Plus software, the USB-2 cable and a 1 mm / 100 parts calibration slide
• Two-year camera warranty

SOFTWARE
• ImageFocus Plus software allows you to save images in .jpg, .tif, .bmp or .dicom formats, as well as videos in .avi format.
• Annotations and measurements can be made on live or captured images
• Compatible with Windows 7, 8 and 10, for 32-bit or 64-bit configurations
• The Mac OS version is also available
• Updates can be downloaded from our website www.euromex.com

PACKAGING
Supplied with power cable, dust cover, spare fuse, user manual, 5 ml bottle of immersion oil and white or green filter (depending on the model). Polystyrene case
