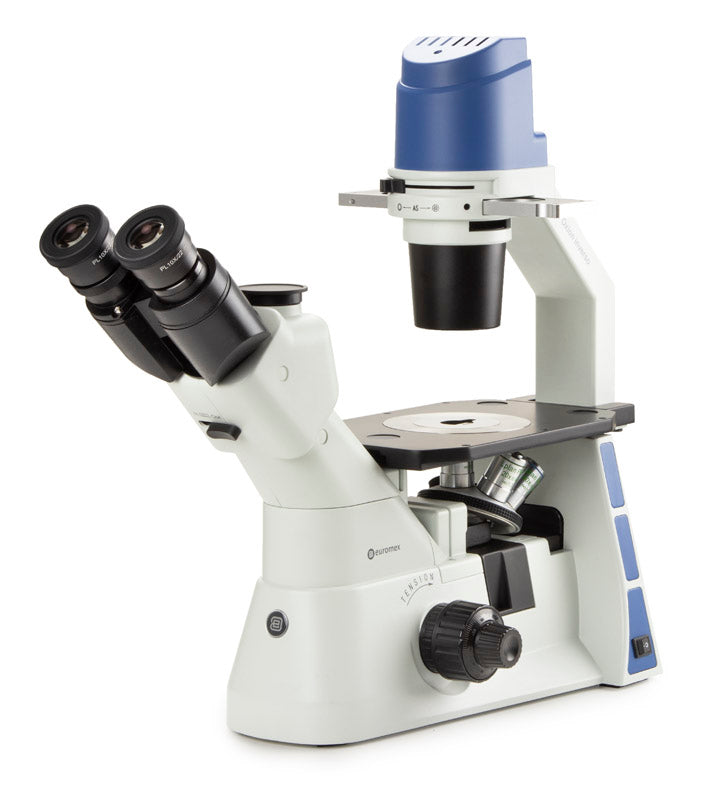

Trinocular Inverted Microscope Oxion Inverso OX.2003-PLPH

Oxion Inverso (and fluorescence)

The Oxion Inverso is the Euromex inverted biological microscope for life sciences, designed for observing living organisms and tissue cultures in culture plates and flasks. The OX.2003-PLPH is the trinocular version for phase contrast: PLPH 10x, 20x and S40x infinity-corrected plan objectives, a slider with phase rings and 5 W NeoLED transmitted illumination. It is supplied with an aluminium case for safe transport.

Technical specifications

• Pair of HWF 10x/22 mm eyepieces
• Trinocular head with 45° inclined tubes, which can be set in a high or low position
• Interpupillary distance from 54 to 75 mm and dioptre adjustment on the left eyepiece
• Inverted quintuple nosepiece on ball bearings
• PLPH 10x, 20x and S40x plan phase objectives, IOS infinity-corrected optical system
• All optics with anti-fungus and anti-reflection coatings for maximum light transmission
• 250 x 230 mm stage (without mechanical stage)
• Includes a glass insert with a 30 mm hole, a metal insert with a 25 mm hole and a metal insert for 35 mm diameter Petri dishes
• Coaxial coarse and fine focusing: 2 µm precision, 0.2 mm per rotation and a total travel of approximately 25 mm
• NA 0.30 condenser with iris diaphragm and filter holder, 72 mm working distance
• Includes a slider with phase contrast rings and a green filter
• Dimmable 5 W NeoLED transmitted illumination, with internal 100-240 V power supply (CE)
• Includes mains cable and aluminium case
