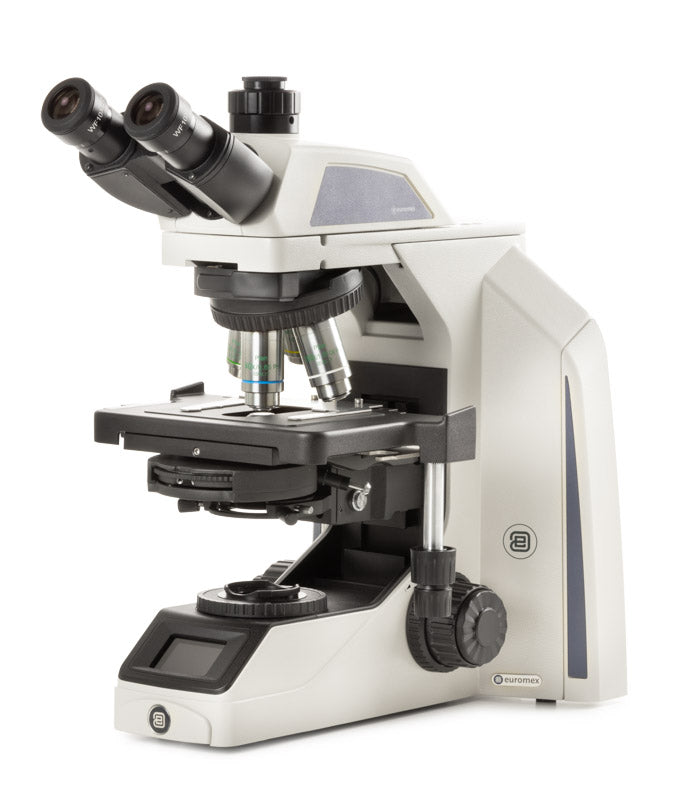

Binocular Microscope Achios-X Observer AX.1153-PLPHi

Achios-X Observer

The AX.1153-PLPHi is the phase contrast version of the Achios-X Observer, the Euromex laboratory range for those who spend many hours at the microscope in cytology or anatomical pathology. It features four PLPHi plan phase objectives (10x, 20x, S40x and S100x oil immersion) on a quintuple nosepiece, with focusing to 1 µm precision and 3 W NeoLED Köhler illumination with smart light control.

Technical specifications

• EWF 10x/22 mm eyepieces
• Siedentopf binocular head inclined at 30°, interpupillary distance from 47 to 78 mm and dioptre adjustment on both eyepieces
• Inverted quintuple nosepiece on ball bearings
• PLPHi plan phase objectives 10x/0.25, 20x, S40x/0.65 and S100x/1.25 oil immersion, EIS 60 mm parfocal
• Optics with anti-fungus and anti-reflection coating for maximum light transmission
• Rackless stage of 238 x 150 mm with integrated mechanical stage of 79 x 55 mm
• Height-adjustable Abbe condenser
• Coaxial coarse and fine focusing: 200 divisions, 1 µm precision, 0.2 mm per revolution and a travel of approximately 30 mm
• Focus stop to protect slides and objectives, with friction adjustment
• Adjustable 3 W NeoLED Köhler transmitted illumination, with external power supply of 100-240 Vac / 5 Vdc 2 A (CE)
• Smart light control (SLC): memorises the intensity for each objective, colour temperature from 3,200 to 7,000 K, LCD screen showing magnification and intensity, lock and switch-off timer to save energy
• CSS system for storing the cable and power supply
• Includes mains cable, 500 mA 250 V spare fuse, 5 ml of immersion oil and dust cover, in a polystyrene box
