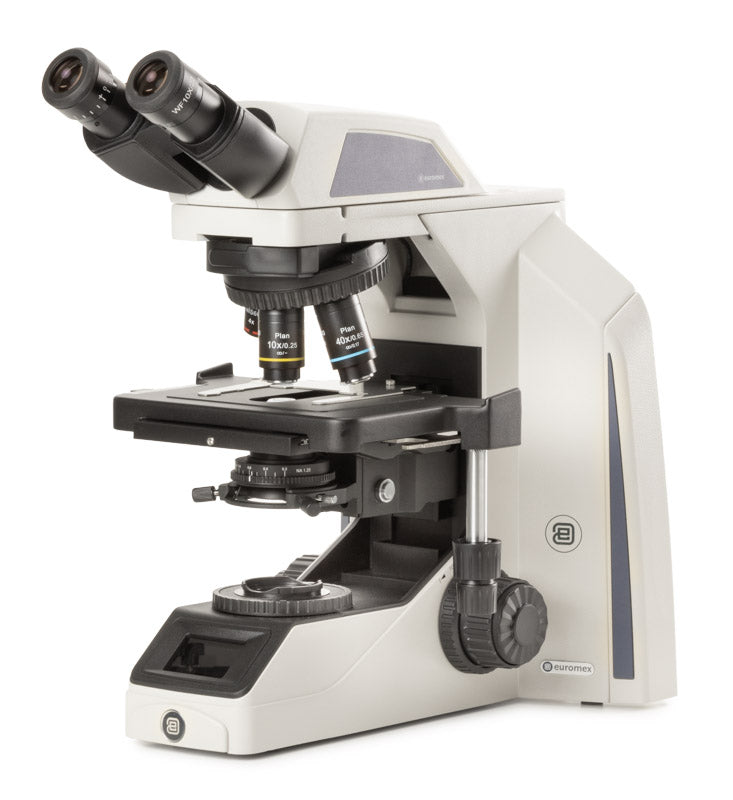

Binocular Microscope Achios-X Observer AX.1052-PLi

Achios-X Observer

The Achios-X Observer is the Euromex laboratory range designed for long hours at the microscope: Siedentopf head, focus controls with 1 µm precision and illumination that remembers the intensity of each objective. The AX.1052-PLi is the binocular version with 4x, 10x and S40x objectives, suitable for cytology and pathology.

Technical specifications

• EWF 10x/22 mm eyepieces
• Siedentopf binocular head inclined at 30°, interpupillary distance from 47 to 78 mm and dioptre adjustment on both eyepieces
• Inverted quintuple nosepiece on ball bearings
• PLi plan objectives 4x/0.10, 10x/0.25 and S40x/0.65, EIS 60 mm parfocal, M25 thread
• Optics with anti-fungus and anti-reflection coating
• Rackless stage of 238 x 155 mm with integrated mechanical stage of 79 x 55 mm
• Abbe condenser with height adjustment
• Coaxial coarse and fine focus: 200 divisions, 1 µm precision, 0.2 mm per revolution and a travel of about 30 mm
• Focus stop to protect slides and objectives, with friction adjustment
• 3 W NeoLED Köhler illumination, adjustable, with external power supply of 100-240 V / 5 V 2 A
• Smart Light Control (SLC): stores the intensity for each objective, colour temperature from 3,200 to 7,000 K and LCD screen showing magnification and intensity
• Storage system for the cable and power supply
• Includes mains cable, spare fuse, 5 ml of immersion oil and dust cover
