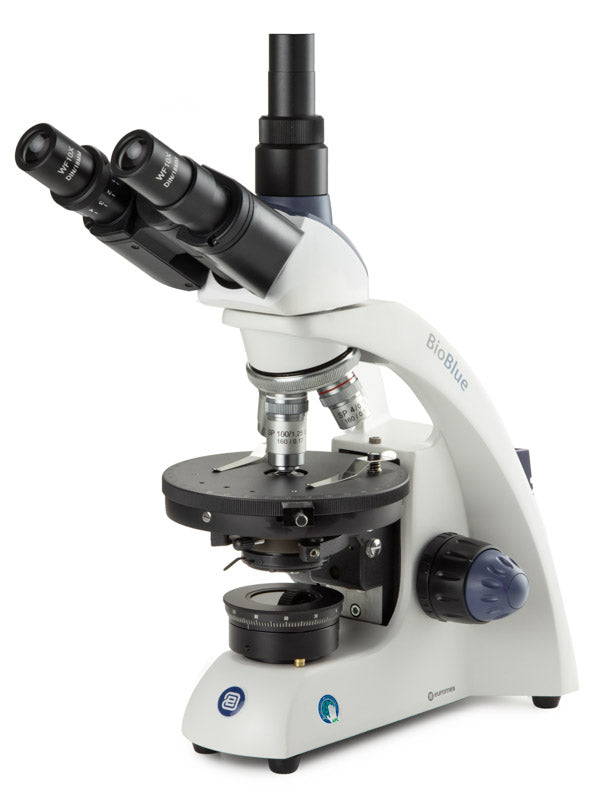

Trinocular Microscope BioBlue BB.4253-P-DLED

BioBlue

The BioBlue series from Euromex is designed for education, with particular attention to ergonomics and optics that deliver sharp images at every magnification. The BB.4253-P-DLED is the trinocular polarising version: rotating polariser above the lamp, sliding analyser and a 129 mm round rotating stage with vernier. Its 1 W two-colour LED illumination can run cordlessly thanks to three rechargeable AA batteries, all at excellent value for money.

Technical specifications

• Secured DIN WF 10x/18 mm eyepieces
• Siedentopf trinocular head, inclined at 30° and rotatable through 360°
• Slide-in analyser and polariser rotatable through 360° above the lamp
• Inverted quadruple nosepiece on ball bearings
• Semi-plan objectives 4x, 10x, S40x and S100x oil immersion
• Optics with anti-fungus and anti-reflection coating for maximum light transmission
• Coaxial coarse and fine focusing: 200 divisions, 2 µm precision, 0.4 mm per revolution, approx. 23 mm travel and friction adjustment
• 129 mm round stage, rotatable through 360°, with 2 clips and vernier
• Height-adjustable Abbe condenser, N.A. 1.25, with iris diaphragm and filter holder
• 1 W two-colour LED illumination with external 5 V DC USB-C adapter and 100-240 V AC multi-connector (CE, 50/60 Hz)
• Cordless use with 3 rechargeable NiMH AA batteries
• Paint with antibacterial protective coating
• Includes power cable, dust cover and 5 ml of immersion oil in a polystyrene case
